What are the available configurations?

1-4 SuperTorque 8Zs 8Zs configured in parallel or banks to engine starter requirements Select a Best Battery Selector (BBS) or Battery Control System (BCS-120) Add DC disconnects

What is an integrated BBS?

A Best Battery Selector couples two isolated 8Z banks together for engine starting power redundancy.

What is an integrated BCS?

A BCS provides alternator and engine control power redundancy. It couples an engine alternator feed to each isolated 8Z bank and provides a single power feed from the isolated 8Z banks for engine control power redundancy.

Which industries should consider the 8R?

Mission critical Datacenters Hospitals Power generation Oil & Gas Cable/Telecom/Wireless

Do I need multiple part #’s to order the integrated system?

No, it can be ordered with all your specifications with a single part #.

Does it ship pre-wired?

Yes, the SuperTorque 8R ships pre-wired.

Is the unit preassembled?

Yes, the SuperTorque 8R is preassembled and tested in our Colorado facility.

Yes, the UL Listing is available for download under Documents.

Is it seismic certified?

Yes, the seismic certification is available for download under Documents.

Yes, it includes a 10-year full warranty.

Will I save time compared to installing individual components?

Yes, on average you’ll save 6 hrs per unit vs. installing separate components. It ships ready for drop-in installation in your engine.

How much less space will I have compared to my existing system?

In general, the 8R results in up to a 90% reduction in space required at the engine compared to lead-acid and NiCad battery systems.

Are there lower emissions?

Yes, approximately 96% net GHG lower emissions.

SuperTorque® 8R

Factory Packaged Engine Starting System

The SuperTorque 8R is a complete engine starting system combining an embedded charger and batteries, BBS, BCS and disconnects. It radically increases engine starting reliability, frees up significant space in engine enclosures, eliminates battery maintenance and replacement, and simplifies specification and installation of the entire engine DC system.

View Datasheet

Overview

Prewired. Preassembled.

The integrated racking, best battery selectors, alternator, engine panel power redundancy, and DC disconnects allow engine manufacturers, integrators, dealers, and datacenters to specify the entire engine DC system with a single part number.

Our SuperTorque 8Z is included, with its powerful high-performance nickel-zinc (NiZn) battery and embedded MicroGenius® 2 charger, optimized for NiZn charging. The charger accepts universal AC input (100-240 volts, 50 or 60 Hz) via either IEC 320 connector and cord or hardwired conduit.

Applications & Industries

Specifications

Output Voltage	12V or 24V DC
Battery Type	Nickel-Zinc (NiZn)
Charger	Embedded MicroGenius 2 charger
Redundancy	Optional BCS-120 and BBS (Best Battery Selector)
Certifications	UL Listed & Seismic Certified
Warranty	10 years
Assembly	Factory-built in ISO 9001-2015 facility

Why Supertorque 8r

Built for Mission-Critical Reliability

Save up to 90% floor space

More enclosure space gives installers and maintenance teams better access to wiring, components, and connection points.

Save 15 hours of labor per enclosure

The SuperTorque 8R saves up to 15 hours of installation labor per generator enclosure compared to installing individual components.

One part number

Specify the entire engine DC system with a single part number and reduce failure points introduced by multi-vendor, field-assembled systems.

Engine / Generator Enclosure Comparison

Reclaim Up to 90% of Your Engine Enclosure Space

The 8R radically increases engine starting reliability, frees up significant space in engine enclosures, and significantly cuts installation time. Eliminate having to purchase and install batteries, racks, chargers, cables, conduits, terminals, disconnects.

Traditional Way: Multiple Components

SuperTorque 8R: One Integrated Unit

Configurations

Configured for Your Engine

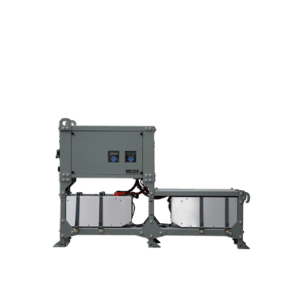

2 8Zs - 2 isolated banks BCS and disconnects 8R 500x500

4 8Zs - 2 isolated banks BBS, BDC, disconnects

8ZR_2Stack

3 8Zs - 3 isolated banks with disconnects 8ZR_3Stack

Get in touch with an expert

Our engineers are ready to help you find the right configuration for your application.
